Dear readers,

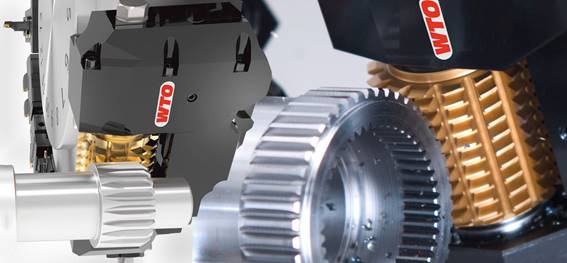

Using the WTO Gear Hobbing Unit it is possible to efficiently manufacture gears in different geometries and sizes with a turning center. This enables highly productive complete machining of turned parts with gears.

A hobbing machine will no longer be required for gears up to quality standard AGMA 8 (ISO 1328 Class 8). The high runout accuracy of the WTO Gear Hobbing Unit guarantees a high surface quality. The interchangeable milling arbor is available in different sizes which facilitate easy tool changes and the universal use of the Gear Hobbing Unit for a wide range of parts.

Gear Hobbing Unit for Turn/Mill Centers Usable for machining gear quality according to standard 8 ISO 1328 (AGMA 8) - Maximum scale swing of ±30° “A” - High stiffness and runout accuracy - Interchangeable milling arbor “B” available in different sizes - Easy cutting tool change through removable counter support unit “C” - Cutting tools can be pre-set Machining Example: external spline of propeller shaft 630 stainless steel due to the shaft’s exposure to salt - shaft diameter 25 mm - spline length 54 mm - 16 teeth - module 1.5 Conventional hobbing in 3 steps: 1. Turning on lathe, 2. external hobbing machine, 3. finishing with lathe WTO Gear Hobbing unit for complete machining with turning center: Machined in total 3 minutes 40 seconds Suitable cutting tools for the WTO Gear Hobbing Unit are available from Star SU, Gleason or LMT and other specialized cutting tool manufacturers.

You could benefit from the Gear Hobbing Unit in your production. Learn more about the Gear Hobbing Unit and the comprehensive WTO tool holder program:

Hobbing of gears High productive manufacturing of gears with CNC Turning Centers according to quality standard 8 ISO 1328 (AGMA 8). Watch in operation.

WTO Product Portfolio WTO is specialized in the design and manufacturing of superior driven precision tool holders with high performance and long life time for CNC Turning Centers and Swiss Type Turning Centers. This Product Portfolio will give you an overview of our extensive static and driven tool holder program. Contact our sales department for more detailed information (704) 714-7765 │sales@wto-usa.com │ www.wto-usa.com
